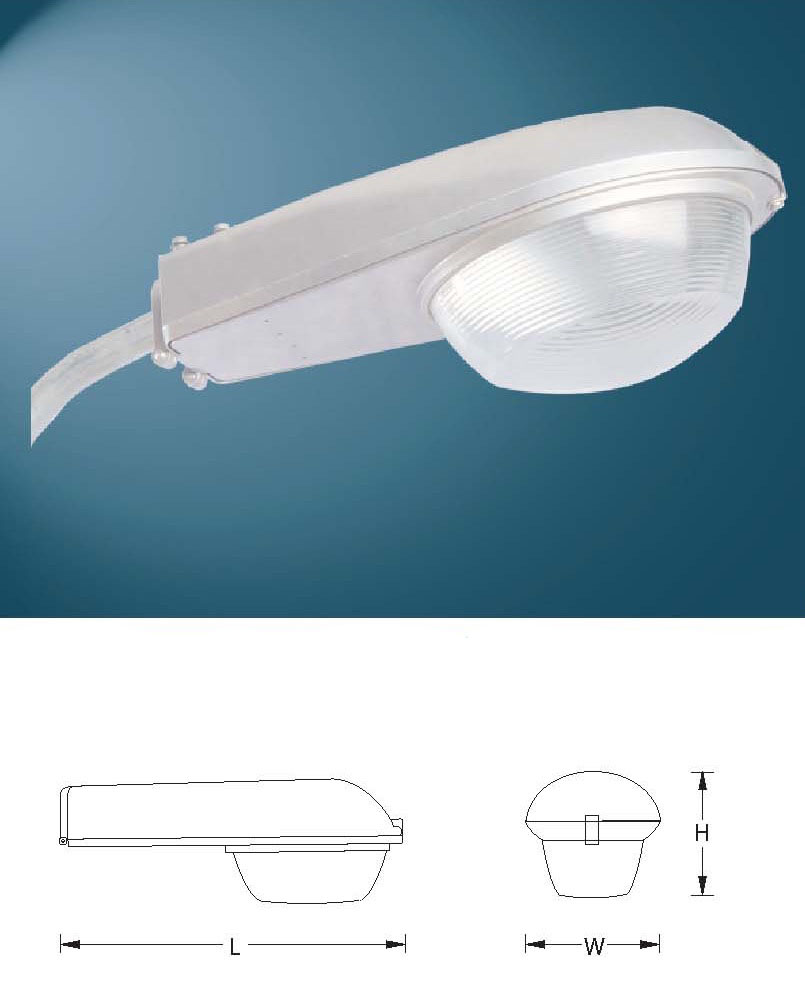

| MODEL | DIMENSION (mm.) | LAMP HOLDER |
LUMEN ( MAX ) |
LAMP TYPE | PRICE (Baht.) | COMPLETE SET (Baht.) | ||
| L | M | H | ||||||
| HI-WB6 | 730 | 350 | 292 | E 40 | 12700 lm. | MV 250 W. | 4000 | 6500 |
| 22000 lm. | MV 400 W. | 4000 | 7000 | |||||
| 20000 lm. | MH 250 W. | 4000 | 7000 | |||||
| 32000 lm. | MH 400 W. | 4000 | 7500 | |||||
| 15000 lm. | HPS 150 W. | 4000 | 6900 | |||||
| 28000 lm. | HPS 250 W. | 4000 | 7000 | |||||
| 48000 lm. | HPS 400 W. | 4000 | 8200 | |||||
SPECIFICATION
HOUSING : CORROSION RESISTANT DIE CAST ALUMINIUM SPECIAL CAST-IN PIPE STOP AND LEVELLING STEPS SIDE ENTRY SUITABLE FOR 1.5-2 INCHES MOUNTING ARM
SURFACE TREATMENT : ION-PHOSPHATE COATED ANTI-RUST WITH TOP FINISHED WITH UV RESISTANCE WHITE POLYESTER POWDER COATED
REFLECTOR : HIGH GRADE ALUMINIUM ANODIZED REFLECTOR
DIFFUSER : CLEAR SAFETY AND TOUGHENED LINE GLASS DIFFUSER
FRAME : DIE CAST ALUMINIUM FRAME STAINLESS STEEL CLIPS AND SCREWS WEATHERPROOF RUBBER GASKET
COLOR : GRAY
PROTECTION CLASS : PROTECTION CLASS EQUIVALENT IP 65
INSTALLATION : ARM BRACKET
APPLICATION : FACTORY , AREAS , CAR PARK , PARK , WALK WAYS , STREETS , ROADWAYS , SQUARE , ETC.
